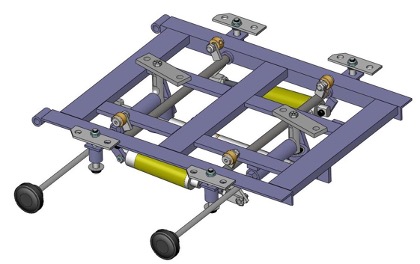

Add Drop Function to an 8in Cushion
AIR FLEX
Add Drop Function to an 8inch Cushion
Tension knob
lifter w /rollers and bolts to attach air hose to cylinder. cylinder with hose fitting, mount bolt, and clevis push button for control box
shoulder bolts to replace the two securing the thoracic cushion manifold w /appropriate # of valves drop pin on mount plate linear bearing (for drop pin) ball bearing/plunger/die spring.
