Compressor Capacitor
AIR FLEX- Compressor Capacitor
TO ACCESS:
Remove two screws holding the plastic enclosure to the top frame. They are on the opposite side of the table from the control box.
Locate the com pressor.

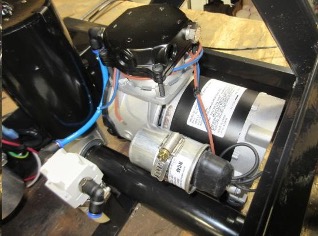

The capacitor is mounted on the compressor and is secured by a hose clamp. Loosen the screw on the hose clamp. Slide the original capacitor out of the band and slide the new one in. The rubber boot can be pulled off to expose the terminals. Move the wires, one at a time, to the new capacitor.
CAUTION: Do not pull on the wire. Grasp the connector which is crimped to the wire.
