Replace Rotation Lock Cam

REPLACING ROTATION LOCK CAM

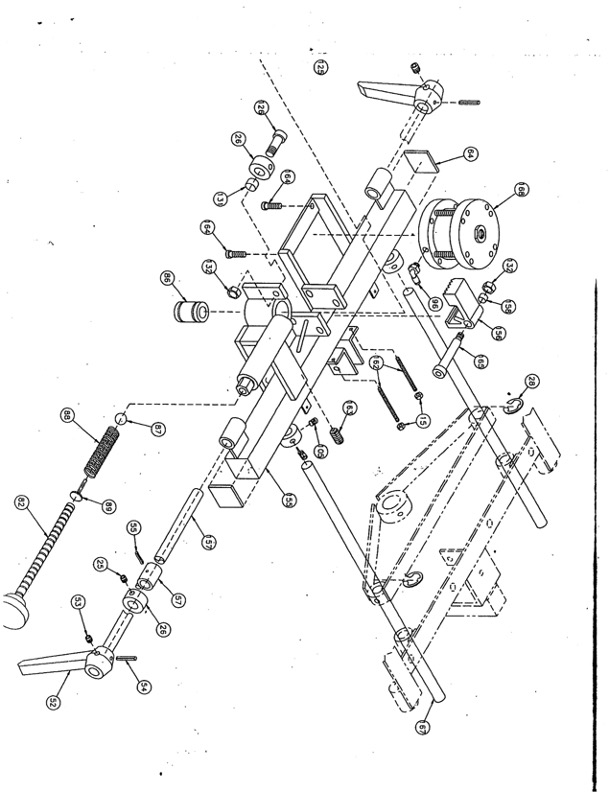

1. Remove handle: loosen set screw and remove roll pin #52, 53, 54 on exploded view
2. Remove # 56 by takeing shoulder bolt off (#165)
3. Remove roll pin from original cam

Cam should be accessible after removing # 56 (lateral lock)

4. Slide the bar out from side with handle still attached

5. Note that there is also a lock collar that will need to be loosened as well

(#25 lock collar)

6. When drilling new hole for new cam offset from original don’t try to use the same hole
