Replacing a Valve on a Table with 1 or 2 Drops

Replacing a Valve on Table With 1 or 2

Drops

1. Use the pedal to elevate the table and then UNPLUG the table.
2. Remove screws from the outer section of the plastic skirt that attaches to the top frame. The screws are on the side near the control box and also at the foot end.
3. Grasp the foot end of the skirt and carefully pull down and away to access the inside of the table. The manifold is located on the scissors.

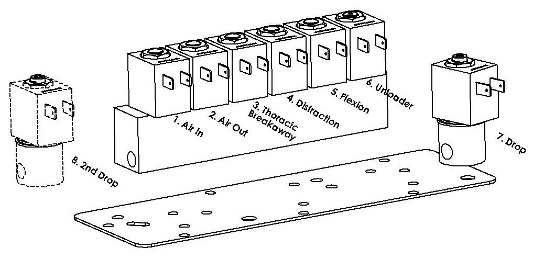

Use this diagram to locate the valve on the manifold that controls the part of the table that is not functioning correctly. If the table has 2 drops then the valve closest to the head end (#8) is for the drop cushion closest to the head end.

NOTE: If you are replacing the stand alone valve at position # 7 then skip to Step 4 at the bottom of Sheet 2.
