Replacing the Motor on an Autoflex
Instructions for Replacing the Motor on an AutoFlex
1. Unplug the table

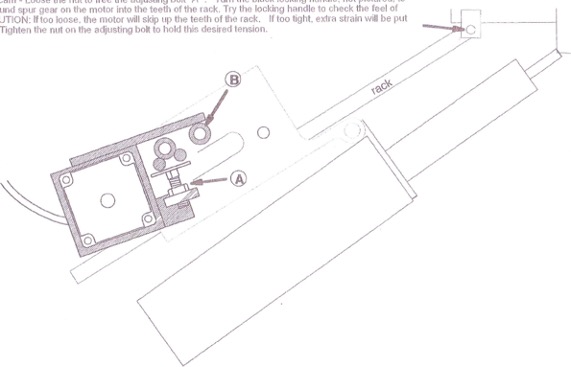

2. Before loosening anything- Take note of the annount of tension needed to properly engage the motor into the teeth of flexion rack This is the tension you will want to restore after the installation.
3. Loosen the carn adjustment “A” and lower it several compIete turns.
4. Remove the nut and shouluer Dolt at location *’B” that holds the motor mount assembly to the flex lock housing.
5. Locate the new minor bracket at “B” and insert bolts.
