Thoracic Breakaway – Flow Control Valve
AIRFLEX
Thoracic Breakaway – Flow Control Valve
Part: H10219

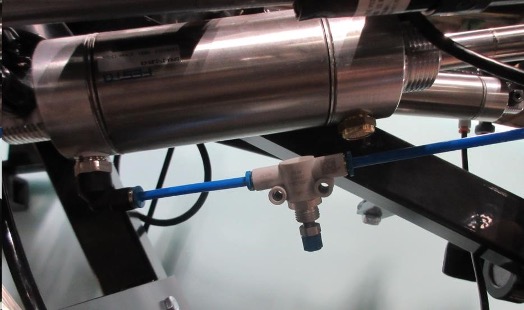

Cut the air hose about an inch from where it enters the fitting on the cylinder and push the cut ends of the hose into each end of the valve.
